Note: The following specs and data are copied from Belden's website, www.belden.com, where further information about this and many other products can be found.
|

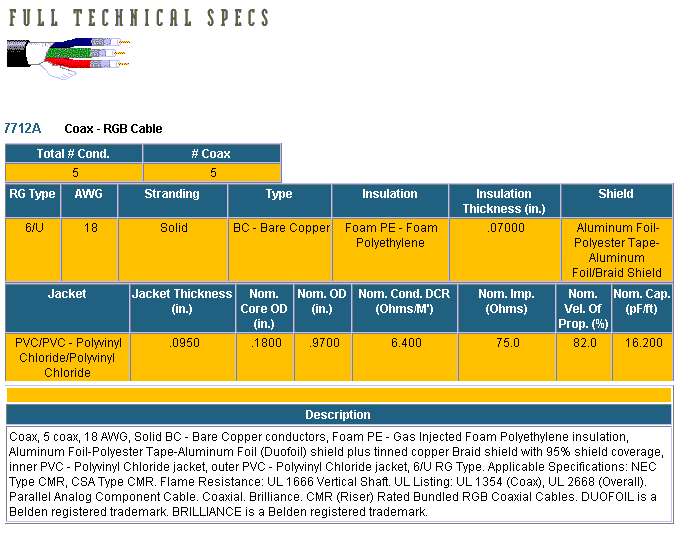

11-27-02 REV. 9 7712A |
|
. |
|
I. DESCRIPTION: |
|
------------ |
|
5 X 1694A PREC. ANALOG OR DIGITAL VIDEO COAX, PVC JACKET |
|
. |
|
II. ELECTRICAL CHARACTERISTICS: |
|
--------------------------- |
|
NOM. IMPEDANCE: 75 OHMS |
|
NOM. CAPACITANCE: 16.2 PF/FT |
|
NOM. VELOCITY OF PROPAGATION: 82% |
|
NOM. DELAY 1.24 NS/FT |
|
NOM. ATTENUATION: |
|
MHZ DB/100 FT. MHZ DB/100 FT. |
|
----- ---------- ----- -------- |
|
1 .24 180 2.42 |
|
3.58 .45 270 2.97 |
|
5 .54 360 3.43 |
|
7 .63 540 4.25 |
|
10 .72 720 4.95 |
|
67.5 1.57 750 5.00 |
|
71.5 1.60 1000 5.89 |
|
88.5 1.75 1500 7.33 |
|
100 1.84 |
|
135 2.10 |
|
143 2.16 |
|
NOM. SHIELD DC RESISTANCE: 3.0 OHMS/M FT. |
|
NOM. CONDUCTOR DC RESISTANCE: 6.4 OHMS/M FT. |
|
+ RETURN LOSS(**): 23DB MIN., 5-850 MHZ |
|
. 15DB MIN., 850-3000 MHZ |
|
III.PHYSICAL CHARACTERISTICS: |
|
------------------------- |
|
NOM. WEIGHT/1000 FT.: 371 LBS. |
|
MIN. BENDING RADIUS: 10" |
|
TEMPERATURE RATING: -40 TO +60 DEG. C |
|
MAXIMUM PULLING TENSION: 345 LBS |
|
CONDUCTOR MATERIAL: 18 SOLID BARE COPPER |
|
.040" NOM. DIA. |
|
INSULATION MATERIAL (COAX): GAS INJECTED FOAMED |
|
HIGH DENSITY POLYETHYLENE |
|
.180" DIA. |
|
SHIELD TYPE: DUOFIOL TAPE + 95% |
|
TINNED COPPER BRAID |
|
COLOR CODE OF JACKETED COAX: RED,GREEN,BLUE,YELLOW, |
|
WHITE |
|
INDIVIDUAL COAX DIAMETER: .275" |
|
OVERALL JACKET MATERIAL: MATTE BLACK PVC |
|
OVERALL JACKET DIAMETER: .970" |
|
UL LISTING-COAX: UL-1354 |
|
-OVERALL: UL-2668 |
|
APPLICABLE SPECIFICATION: NEC TYPE CMR CSA TYPE CMR |
|
FLAME RESISTANCE UL 1666 VERTICAL SHAFT |
|
. |
|
* SUGGESTED CONNECTOR: KINGS 2065-10-9 75 OHM BNC |
|
. |
|
** TESTED IN ACCORDANCE WITH ASTM D-4566 PARAGRAPH 45.3, |
|
USING A 75 OHM FIXED BRIDGE AND TERMINATION. |
