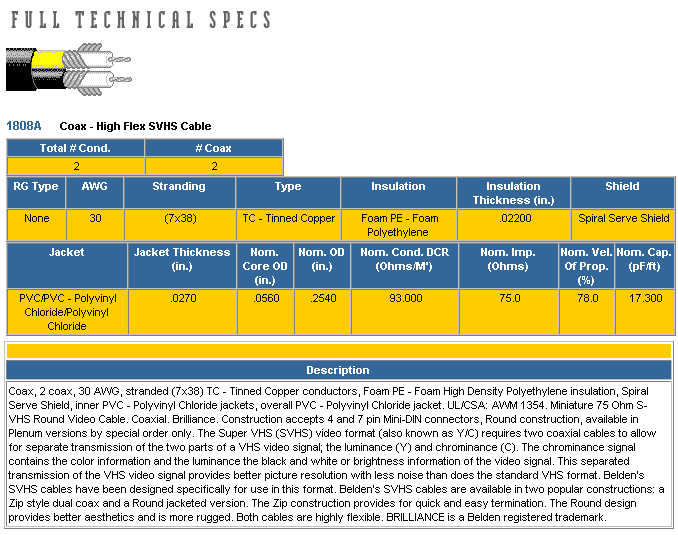

Belden 1808A Technical Specs and Data
| To Blue Jeans Cable Home | Our Belden 1808A Cable Price List |
Note: The following specs and data are copied from Belden's website, www.belden.com, where further information about this and many other products can be found.
03/06/02
REV. 4 1808A
.
I. DESCRIPTION:
-----------
MINIATURE 75 OHM S-VHS ROUND VIDEO CABLE.
.
II. ELECTRICAL CHARACTERISTICS:
--------------------------
IMPEDANCE: 75 +/- 5 OHMS
VELOCITY OF PROPAGATION: 78%
CAPACITANCE
CONDUCTOR TO SHIELD: 17.3 PF/FT.
INDUCTANCE: .097 MICRO-H/FT.
ATTENUATION: MHZ
DB/100 FT.
1
.6
3.6 1.2
5 1.4
7 1.7
9 2.0
10
2.1
30 3.8
50 5.1
100 7.6
.
III.
PHYSICAL CHARACTERISTICS:
------------------------
TEMPERATURE RATING: -40 TO +60 C
MIN. BEND RADIUS: 1.0"
MAX. PULLING TENSION: 11.7 LBS.
* WEIGHT/1000 FT.: 32 LBS.
CONDUCTOR MATERIAL & DIA.: 30(7X.004) TC
.013"
INSULATION MATERIAL: FOAMED HDPE
SHIELD TYPE AND % COVERAGE: TC SERVE; 90%
JACKET MATERIAL & DIA.: PVC (MATTE BLACK)
.255"
UL/CSA: AWM 1354
.
IV. COLOR CODE: BLACK, YELLOW
.
ALL VALUES NOMINAL UNLESS OTHERWISE
STATED
